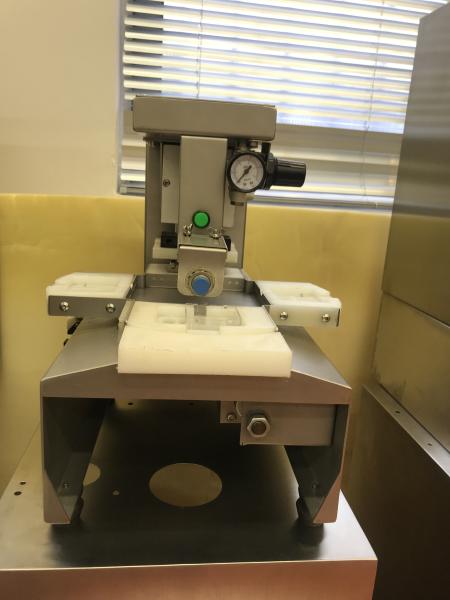

ETC-60A Semi-automatic Capsule and Tablet Deblister , Deblishtering Machine
●Working Principle
1.This machine make the drug particles released from the waste board does not produce any pollution and damage to a wide scope of work.
2. This machine could take out the capsule from the blister plate and achieve the desired effect of the drug tablets excised.
3. The machine structure, beautiful appearance, small size, light weight, easy operation and simple maintenance adjustments.
●Advantage
1. Reasonable and detailed design. The whole design process is in the angle of using. Operated safely, easy to move and adjust for differently sized and arranged blisters to maximize the availability in production.
2. This product is well recognized by western clients, also received high praise from domestic users with its good effects, small size and flexible properties. Its price is good as per its high effectiveness and quality.
●parameter
| Deblister Model Technical Specifications |
| Model | ETC-60N | ETC-60A | ETC-120A |
| Efficiency | 60 pcs/min | 60 pcs/min | 120 pcs/min |
| Applicable Blister | In-line arranged | Any kind | In-line arranged |
| Mode | Semi-auto | Semi-auto | Auto |
| Working Voltage | 220 V AC 50–60 HZ | 220 V AC 50–60 HZ | 220 V AC 50–60 HZ |
| Power Rating | 25W | 15W | 35W |
| Dimensions | 180×270×360 mm | 450×340×410 mm | 420×365×445mm |
| Weight | 12kg | 15kg | 15kg |
| Air Supply | N/A | 4-6bar (0.4-0.6 Mpa) | N/A |
| Air Consumption | N/A | 0.008m³/min | N/A |
For more information,please click the link below where we uploaded the relevant video on Yu Tube
https://youtu.be/duMvIwLJu2Q
Our Workshop
